Magnesium anode shaft 2.24 / 0.98inch

Article: B342250

Save 23% Save 23%
Original price 668,00 kr
Original price 668,00 kr - Original price 668,00 kr
Original price 668,00 kr
Current price 514,00 kr
514,00 kr - 514,00 kr
Current price 514,00 kr
Availability:
In stock

Bulk discount
PCS Discount Price
2 5 % 488,30 kr /st
5 10 % 462,60 kr /st
20 20 % 411,20 kr /st
50 25 % 385,50 kr /st
Request a quote
Product description

Product specification

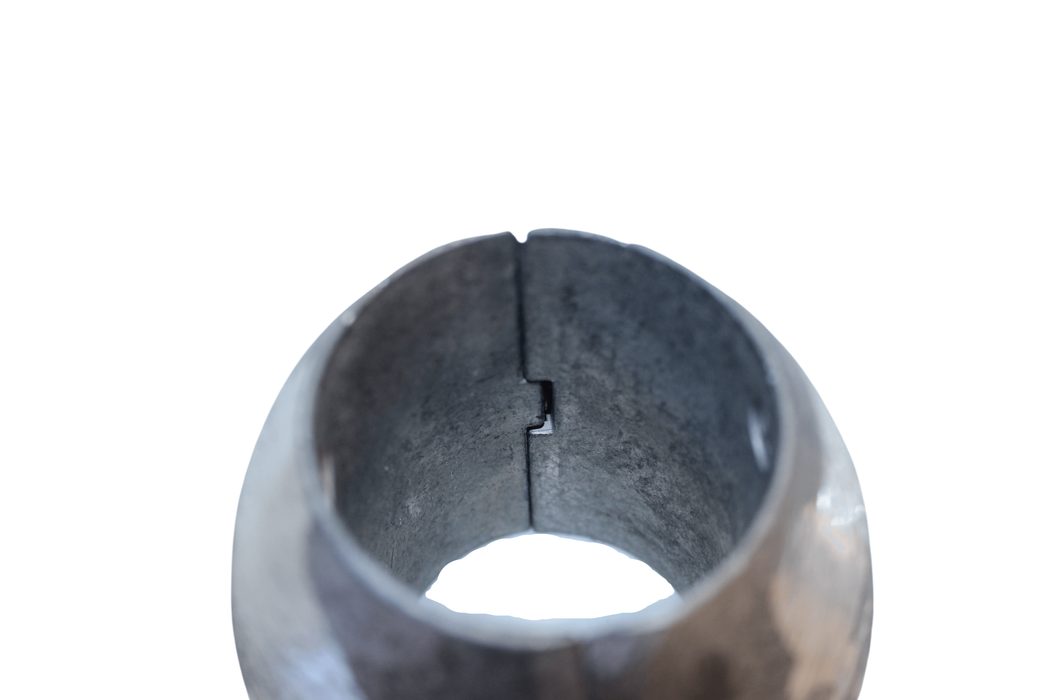

Shaft anode for 25mm propeller shaft, Magnesium

Material: Magnesium

Alloy : AZ 63B

Article: B342250


  • Weight : 0.11 KG/0.24 lbs
  • For propeller shaft: 25mm/0.98 inch
  • Outer diameter: 57mm/2.24 inch


Application areas:

  • Propeller shaft
  • Round objects

Shaft anode for ship / boat

Magnesium is mainly used in brackish water and fresh water. Magnesium anodes can be used in brackish water if the resistivity exceeds about 1.0 Ωm.

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes thorough testing and quality assurance, as it has been for over 30 years ...

Are you unsure of the type of material to use? Ask us, we can!

Technical data

  • Capacity: 1230 Ah / kg(2711.68 Ah / lbs)
  • Consumption: 13.3 kg / A year(29.32 lbs / A year)
  • Efficiency: about 55%
  • Potential: -1 500 mV rel Ag / AgCl in seawater


Typical chemical composition, AZ 63B (most common alloy in water), magnesium.

Material

% of weight

Aluminum (Al)

min 5.3 max 6.7

Zinc (Zn)

min 2.5 max 3.5

Manganese (Mn)

> 0.3

Silicon (Si)

~ 0.1

Copper (Cu)

<0.05

Iron (Fe)

<0.01

Magnesium

Remaining
